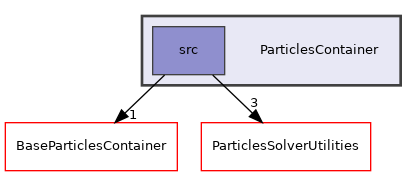

Directory dependency graph for ParticlesContainer:
Directories | |
| directory | src |
Detailed Description
Particles Container
The thorn implements the geodesic evolution of null and timelike particles in a 3+1 general relativity background. It uses the implementations made in ParticlesContainer and ParticlesSolverUtilities thorns.
Index
- Particles Container
- Dependencies
- Additional thorn features
- Random particle initialization
- Parameters file
- Random particle initialization
- BaseParticlesContainer shared parameters
Particles Container
The Photons container class has the definitions of the class, methods and functions needed to perform the geodesic evolution. It defines the ParticlesContainer class derived from the BaseParticlesContainer abstract class implemented in the Particles Container thorn.
The ParticlesContainer class contains the definition of the evolve, compute_rhs, and normalize_velocity methods, all of it needed during the initialization and evolution of the geodesics. It also contains the value of the mass of the particles. It is defined inside of the ParticlesContainer.hxx file.
It also contains the definition of two initializers, for the moment, that set up the particles' position and velocity inside of the PhotonInitializers.hxx file. Inside the ParticlesEvolution.cxx are the scheduled functions implemented by the thorn.
Dependencies
The code uses the thorns:
- BaseParticlesContainer.
- ParticlesSolverUtilities
You need to have those thorns and its requirements compiled.
Additional thorn features
The thorn also includes some extra features that can be used for the simulation.
Random particle initialization
The thorn provides two functions that initialize an arbitrary number of particles with random positions and velocities but fixed energy. The main difference is that one function initializes particles distributed within a sphere of radius $R$, while the other distributes them across the entire rectangular grid. This can be managed by the num_photons, initializer, init_params_d[10], and init_params_i[10] parameters.
Parameters file
The thorn have the parameters related with the particle initialization and the ones shared with the BaseParticlesContainer thorn.
The most relevant parameter for timelike particles creation is:
| Parameter | Type | Description | Range | Default |
|---|---|---|---|---|
| particles_mass | REAL | Particles' mass. | 0.0 to infinity | 0.0 (null particles) |
Random particle initialization
The thorn has the following parameters for the particles initialization:
| Parameter | Type | Description | Range | Default |
|---|---|---|---|---|
| num_photons | INTEGER | Total number of photons to be generated | 0 to infinity | 0 |
| initializer | KEYWORDS | Available initialization function to be called | box, spherical | none |
| init_params_d[10] | REAL[10] | Double parameters needed to pass to the initializer function | any | 0.0 |
| init_params_i[10] | INTEGER[10] | Integer parameters needed to pass to the initializer function | any | 0 |
BaseParticlesContainer shared parameters
The thorn shares all the parameters defined on the BaseParticlesContainer thorn. See BaseParticlesContainer documentation.
